HPNA9000
Catcast

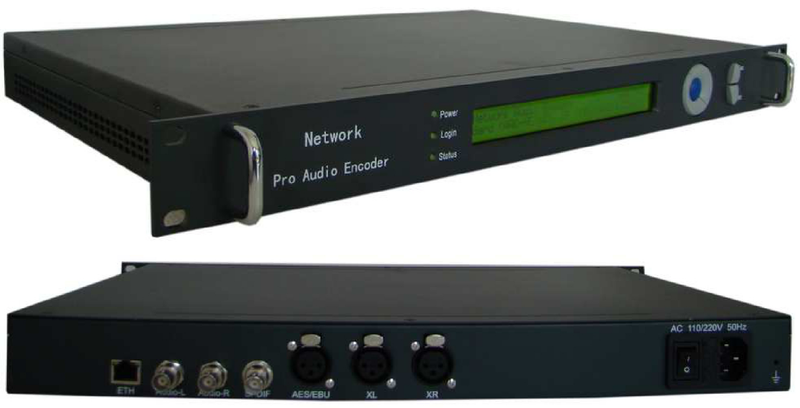

HPNA9000 Professional Audio IP Encoder
Outline
HPNA9000 Pro3 professional audio encoder is use the most advanced MPEG4 AAC audio compression algorithm.In the harsh conditions of the low bandwidth also possess excellent audio reducing performance.It supports a variety of audio coding standards, such as AAC-LC, AAC-HE, AAC-HE(v2).
In order to adapt to a variety of complex network audio application environment. HPNA9000 provide a rich media streaming protocols.For example,RTMP, RTSP/RTP, HTTP, UDP and so on.The user can listen to live audio through the web_browser iPad iPhone,Android and IP-STB. It is widely used in professional radio broadcast network.
Feature
1. High stability, embedded design, low power consumption.
2. Low compression bit rate.
3. High frequency width of audio coding, high-fidelity sound quality.
4. support HLS,UDP, HTTP, RTSP/RTP, RTMP protocol.
5. support AES-EBU and analog balance port.
6. 32KHz、44.1KHz、48KHz.can be arbitrary regulatory.
7. Audio coding Support AAC-LC、AAC-HE、AAC-HE(v2).
8. Bit rate 10Kbps-512Kbps.
9. Embedded WEB configuration, the LCD front panel and button configuration .
10. 1 Gigabit Ethernet output.
Specification
Input | AESE-EBU (XLRF) | |
Analog balance(XLRF） | ||
Line-LR (BNC) | ||
SPDIF (BNC) | ||
Audio Encoding | Sampling Rate | 32KHz 44.1KHz 48KHz |
Track | Stereo | |
Coding standard | AAC-LC, AAC-HE, AAC-HE(v2) | |
Bit rate | 10Kbps~512Kbps | |
Output | Port | 1 Gigabit Ethernet RJ45 |
Output protocol | HLS | |
RTMP | ||
HTTP-FLV | ||
HTTP-TS | ||
RTP-TS | ||
RTSP | ||
UDP-TS | ||
Management | Front panel | LCD and seven keys |
Network | By browsing the web management | |
General | Weight | 4kg |
Size | 1U | |
Power | AC110V~220V 50/60Hz | |
Power consume | 8W,no fan structure | |
