HP814B
Catcast

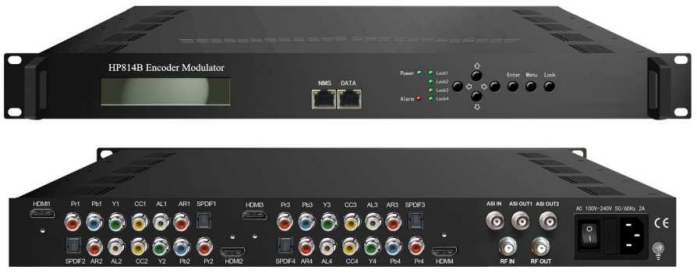

HP814B MPEG2/MPEG4 HD 4-in-1 Encoder
Product Overview
MPEG2/H.264 HD Encoder is new professional HD audio &video encoding device with powerful functionality.
It has equipped with 4 HDMI/YPbPr/AV channels input supporting MPEG-2 & MPEG-4 AVC/H.264 video encoding and DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding and AC3 (2.0/5.1/7.1) passthrough. It is also embedded with 4 CVBS port for CC (Closed Caption) only.
To meet customers’ various requirements, HP814B is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.
Key Features
* MPEG2 HD & MPEG4 AVC H.264 HD video encoding
* AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
* Support DD AC3 (2.0/5.1/7.1) passthrough
* 4* HDMI/YPbPr/AV channels in
* 1*ASI in for re-mux;
* Support CC (Closed Caption) EIA608, (from CVBS source only)
* Support Low Delay
* LCN (Logical Channel Number) support
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web
Principle Chart
Specification
Encoding Section | |
Video (HDMI) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | HDMI*4 |
Resolution | 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
Low Delay | Normal, Mode 1, Mode 2 |
Aspect Ratio | 4:3; 16:9 |
Audio (HDMI) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
Interface | HDMI*4 (SPDIF Not Applicable) |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |
Video (YPbPr) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | YPbPr*4 (RCA) |
Resolution | 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DDAC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
Interface | 4*Stereo/8*mono |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |
System | |
Local interface | LCD + control buttons |
Remote management | Web NMS |
Stream Out | 2 ASI mirrored out (BNC type, 100M); IP (4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
NMS interface | RJ45, 100M |
Language | English |
General | |
Power supply | AC 100V~240V |
Dimensions | 482*400*44mm |
Weight | 4.5 kg |
Operation temperature | 0~45℃ |
