In today’s high-speed communication era, fiber optic transmission has become the backbone of CATV, IPTV, and broadband networks. But as optical signals travel over long distances, they inevitably weaken. To maintain signal quality and stability, network operators rely on EDFA amplifier technology — a proven and efficient way to boost optical power without converting signals into electrical form.
An EDFA (Erbium-Doped Fiber Amplifier) is a crucial component in modern CATV and FTTH systems, ensuring high-quality, long-distance transmission for digital TV, internet, and data services.
An EDFA amplifier is an optical device that amplifies weak light signals directly in the optical domain. It uses erbium-doped fiber as the gain medium, excited by a pump laser (typically 980 nm or 1480 nm), to boost optical signals in the 1550 nm band — the standard wavelength for fiber optic communication.
When the doped fiber is energized, erbium ions emit photons of the same wavelength as the incoming signal, increasing its power. This makes the EDFA amplifier one of the most efficient ways to extend transmission distance and maintain signal quality in optical networks.
Without amplification, light signals weaken rapidly over long fiber spans. This attenuation affects both image and data quality. The EDFA amplifier resolves this issue by:
Extending transmission distance beyond 100 km.
Reducing noise for high-fidelity CATV and IPTV delivery.
Supporting WDM (Wavelength Division Multiplexing) systems, amplifying multiple signals at different wavelengths simultaneously.
Maintaining consistent output power for stable network performance.
Especially in WDM fiber optic systems, WDM EDFA amplifiers enable operators to carry multiple channels through one optical fiber while maintaining equal gain across wavelengths — essential for large-scale broadcasting or data backbones.
A standard EDFA amplifier consists of three main components:
Erbium-Doped Fiber (EDF) – The core medium where optical amplification occurs.
Pump Laser Diodes – Operating at 980 nm or 1480 nm to excite erbium ions.
WDM Coupler and Isolators – The WDM coupler combines pump light with input signals, while isolators prevent signal reflection.
When the optical signal passes through the excited fiber, the stimulated emission process amplifies the light intensity. In WDM EDFA systems, the WDM coupler allows multiple wavelengths to be simultaneously boosted within the same amplifier, improving transmission efficiency and reducing hardware costs.
Depending on the application, EDFA amplifiers are categorized into:
Installed immediately after the optical transmitter to increase output power before the signal enters the fiber.
Placed along the transmission path to compensate for loss in long fiber links.
Located just before the receiver to enhance weak signals and improve reception quality.
In multi-channel WDM EDFA systems, these amplifier types are combined strategically to ensure consistent performance across long distances and multiple network nodes.
When choosing an EDFA amplifier for CATV or FTTH applications, consider these key parameters:
High Output Power (up to +27 dBm) – Extends network reach.
Low Noise Figure (< 5 dB) – Maintains signal purity.
AGC/APC Control Modes – Ensures stable output under varying conditions.
Multiple Output Ports (1×2, 1×8, 1×16, etc.) – Ideal for multi-branch networks.
Intelligent Web/SNMP Management – Simplifies monitoring and maintenance.
In WDM EDFA amplifiers, equal gain across multiple wavelengths is especially critical to avoid channel imbalance and ensure consistent optical performance.
The EDFA amplifier is widely used across multiple optical transmission systems, including:
CATV Optical Distribution – Amplifies 1550 nm broadcast signals for wide-area delivery.
IPTV and FTTH Networks – Ensures stable HD and 4K video streaming.
DWDM Backbone Networks – WDM EDFA boosts multiple wavelength channels simultaneously.
Long-Distance Fiber Links – Maintain signal quality over extended distances.
By combining WDM EDFA technology with advanced optical design, network operators can deliver reliable, high-bandwidth content over vast geographic areas — from city networks to national telecom backbones.

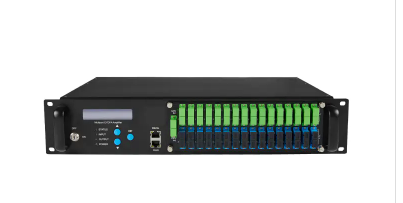

Key Features:
1. It adopts the top brand pump laser and double-cladding active fiber.
2. Each output port is built in with CWDM
3. Compatible with any FTTx PON： EPON、GPON、10GPON.
4. Perfect APC, ACC, and ATC optical circuit design ensures low noise, high output, and high reliability of the device in the whole operating band (1545 ~ 1565nm).
5. It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the laser.
6. Output adjustable, adjustment range: 0~-4dBm.
7. RF test in the front panel(optional).
8. The switching time of the optical switch is short, and the loss is small. It has the functions of automatic switching and forced manual switching.
9. Built-in dual power supply, automatically switched, and hot plug supported
10. The operating parameters of the whole machine are controlled by a microprocessor, and the LCD status display on the front panel has many functions, such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.
11. Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
When evaluating EDFA amplifiers, take into account:
Required output power and number of ports
Noise figure and gain uniformity
Compatibility with WDM EDFA systems
Remote management capabilities
Operating wavelength range (1540–1565 nm)
Choosing the right EDFA amplifier can dramatically improve your network’s efficiency and reduce long-term maintenance costs. Catcast’s engineering team can help design custom amplification solutions to meet your exact CATV or IPTV transmission needs.
The EDFA amplifier remains an essential component of modern optical communication systems, delivering high-gain, low-noise amplification for long-distance signal transmission. Whether used in CATV, IPTV, or WDM fiber networks, it ensures superior performance and stability.
With over 20 years of experience, Catcast continues to lead in EDFA amplifier innovation, providing cutting-edge solutions for fiber optic communication and transmission systems.
Want to learn more about Catcast’s latest WDM EDFA amplifiers and fiber optic products?
