In the era of digital transformation, broadcasting and cable operators are constantly upgrading their infrastructure to support both IP-based and traditional analog systems. This is where the IP to Analog Modulator becomes essential — serving as a bridge that connects modern IPTV or IP streaming systems with legacy analog television networks.
An IP to Analog Modulator (also known as an IP RF Modulator or IP to RF Modulator) is a professional headend device that converts digital IP video signals into analog RF signals. These analog signals can then be distributed through standard coaxial cables to televisions or cable networks that do not support digital input.
In simpler terms, this modulator allows broadcasters and service providers to transmit IP-based video streams — such as IPTV, surveillance video, or digital signage — through analog TV systems. It’s the ideal solution for hotels, hospitals, schools, and community cable systems that still operate on analog distribution networks.
The IP to Analog Modulator works through a series of precise signal conversions that transform digital IP data into analog TV signals suitable for RF transmission.
Here’s how it works step by step:
Signal Input: The device receives digital video signals over IP protocols (UDP or RTP) through a Gigabit Ethernet port (RJ45).
Signal Decoding: The modulator decodes the IP video streams, often supporting MPEG-2, MPEG-4 AVC/H.264, or H.265/HEVC video formats.
Digital-to-Analog Conversion: The decoded digital signals are then converted into analog TV signals such as PAL, NTSC, or SECAM.
RF Modulation: Finally, the device modulates the analog signals into RF output frequencies, ready to be distributed via coaxial cables to analog televisions or cable systems.
By integrating both encoding and modulation, an IP to Analog modulator acts as a hybrid digital-to-analog modulator, ensuring compatibility between modern IP video systems and older broadcast networks.
Modern IP to Analog modulators are designed for professional broadcast environments and include advanced capabilities such as:
Multiple IP Inputs: Supports multiple SPTS or MPTS streams over UDP/RTP.
Flexible Modulation Standards: Compatible with PAL, NTSC, SECAM, and QAM/QPSK formats.
RF Output Control: Adjustable frequency output (typically 47–860 MHz).
High Stability and Low Noise: Ensures clear, consistent analog video quality.
Web-Based NMS Management: Allows remote configuration and monitoring.
Multi-Function Integration: Often integrates encoding, multiplexing, and RF output in one compact unit.
These features make the IP to RF modulator a powerful tool for CATV headend setups, IPTV networks, and mixed analog-digital distribution systems.
The IP to Analog modulator has a wide range of applications in industries and institutions that rely on hybrid signal distribution:
Hotels and Resorts: To convert IPTV streams into analog signals for guest room TVs.
Hospitals and Campuses: For distributing educational or informational channels.
Cable TV Networks: To integrate new IP channels into existing analog CATV systems.
Broadcast Headends: To distribute content from IP sources to analog sub-networks.
Surveillance Systems: For displaying IP camera feeds on analog monitors.
By providing a seamless link between digital IP transmission and analog output, this device extends the life and value of legacy infrastructure.
Here are some key advantages that make IP to Analog modulators an essential part of modern broadcast solutions:
Cost Efficiency: No need to replace the entire analog system — easily integrate IP content.
Flexibility: Supports both digital and analog output, ideal for transition systems.
Scalability: Can handle multiple channels simultaneously with stable RF output.
Compatibility: Works with IPTV, OTT streams, and local video content.
Reliability: Engineered for 24/7 operation with strong RF stability and low error rates.
These benefits make IP video to analog modulators indispensable in hybrid environments where traditional analog networks coexist with modern IP-based platforms.

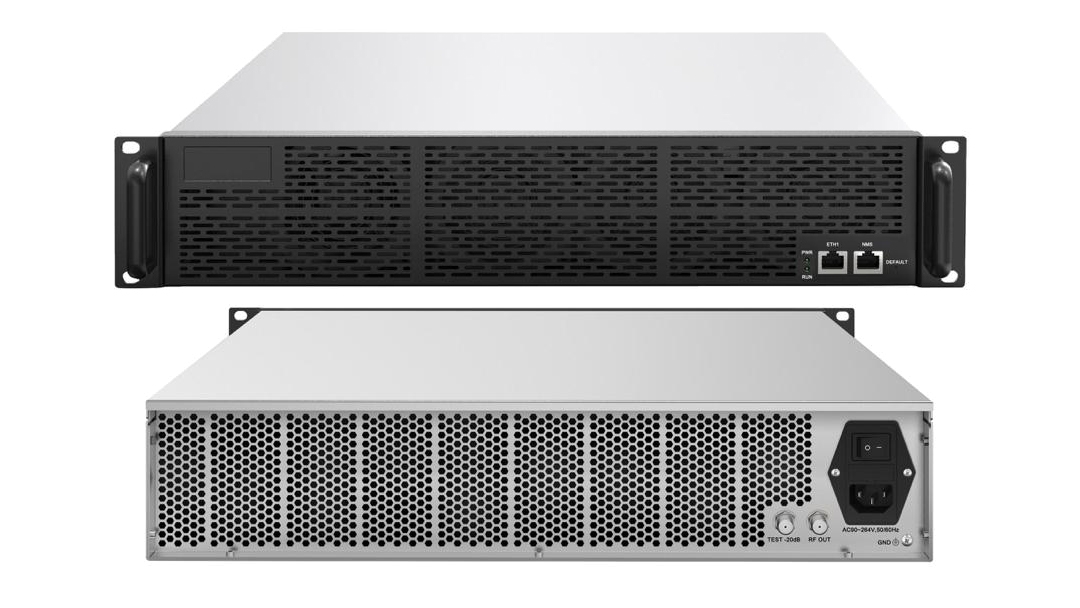

Key Features:
The system provides 1 GE input ports for both MPTS and SPTS video streams
Compact 2RU design with 5 cooling fans and a dustproof screen
Receive up to 32/48/64 IP streams and output up to 32/48/64 channels in NTSC or PAL standard
Easy configuration and software upgrade through the built-in Web GUI
Optional function on teletext and overlay
Support BISS decryption, optional

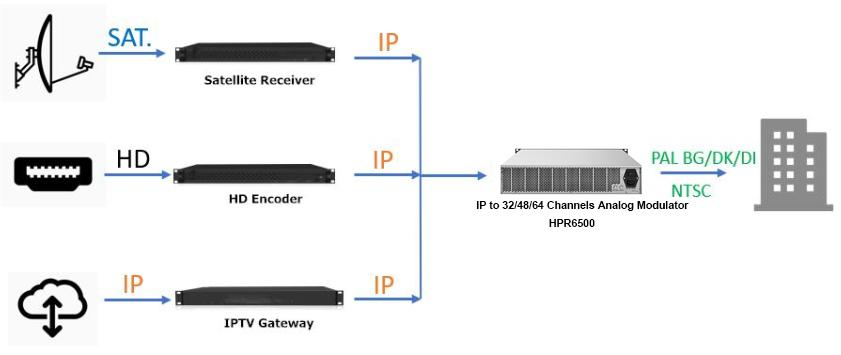

System Diagram:
When selecting an IP to Analog modulator, consider the following:
Number of Channels: Choose based on how many IP inputs and analog outputs you need.
Modulation Type: Ensure compatibility with your regional standard (PAL/NTSC/SECAM).
RF Output Frequency Range: Make sure it matches your existing CATV system.
Network Management: Opt for devices that offer remote web or SNMP control.
Application Type: Identify whether it’s for hotel TV systems, IPTV broadcasting, or local cable insertion.
For demanding projects, always look for a professional headend modulator with proven stability and support for both digital and analog environments.
The IP to Analog modulator plays a crucial role in modern broadcast and distribution systems, bridging the gap between IP-based streaming technologies and traditional analog TV networks.
By converting digital IP video into analog RF signals, it enables seamless compatibility, flexibility, and reliability for CATV and IPTV operators worldwide.
With over 20 years of expertise in CATV, IPTV, and fiber optic transmission, Catcast continues to lead the market with innovative IP to RF modulator and broadcast headend solutions designed for efficiency, performance, and long-term reliability.
Want to explore Catcast’s complete range of professional modulators and broadcast equipment? [Click here] to learn more about our IP to Analog and Digital Headend product line.
