In today’s broadcasting and IPTV environments, delivering high-quality audio and video signals reliably is essential. One of the core devices that makes professional TV reception and content distribution possible is the IRD decoder. Whether used by broadcasters, cable operators, hotels, or IPTV system integrators, IRDs play a crucial role in receiving, decoding, and outputting broadcast signals for further distribution.
This article explains what an IRD decoder is, how it works, and why it is important, followed by a recommended professional-grade IRD from Catcast Technology.
An IRD (Integrated Receiver Decoder) is a professional device used in broadcast and IPTV systems to receive, demodulate, decrypt, and decode incoming audio/video signals. Unlike consumer set-top boxes, IRDs are designed for carrier-grade reliability, support multiple input/output formats, and provide stable operation for 24/7 environments.
Typical users include:
TV stations and broadcasters
Cable and satellite operators
IPTV/OTT platform operators
Hotels and hospitality TV systems
Monitoring centers and government institutions
Although IRDs come with many advanced features, their workflow can be summarized in four major functional steps:
The IRD receives broadcast or IP signals from multiple sources. Depending on the model, inputs may include:
TS over IP (UDP/RTP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP etc.)
Satellite, cable, or terrestrial RF signals
Encrypted transport streams
The IRD collects the incoming data packets and prepares them for processing.
If the signal is encrypted, the IRD performs:
Descrambling (BISS-1, BISS-E, or CAS systems)
Error correction
Stream validation
This step ensures the signal is stable and authorized for decoding.
Next, the IRD converts the compressed digital stream into playable audio and video formats. Common decoding standards include:
Video: MPEG-2, MPEG-4/H.264, H.265/HEVC, AVS+
Audio: AAC, AC3, EAC3, MPEG audio, DRA
At this stage, the device produces baseband video and audio suitable for broadcast or AV systems.
Once processed, the IRD outputs signals via professional broadcast interfaces:
HDMI
CVBS Analog Video
SDI (SD/HD-SDI)
Analog or Digital Audio (XLR, AES/EBU)
These outputs are then delivered to:
Encoders
Modulators
IPTV headends
Hotel TV systems
Monitoring screens
Professional IRDs ensure:
High reliability for 24/7 broadcast
Low latency AV decoding
Multi-protocol compatibility
Stable signal monitoring
Accurate reproduction of source quality
For organizations that depend on continuous, uninterrupted content delivery, a high-quality IRD is indispensable.
If you are looking for a flexible, professional-grade network decoder, Catcast’s HPR801ND is an excellent choice.
Detalles del producto HPR801ND

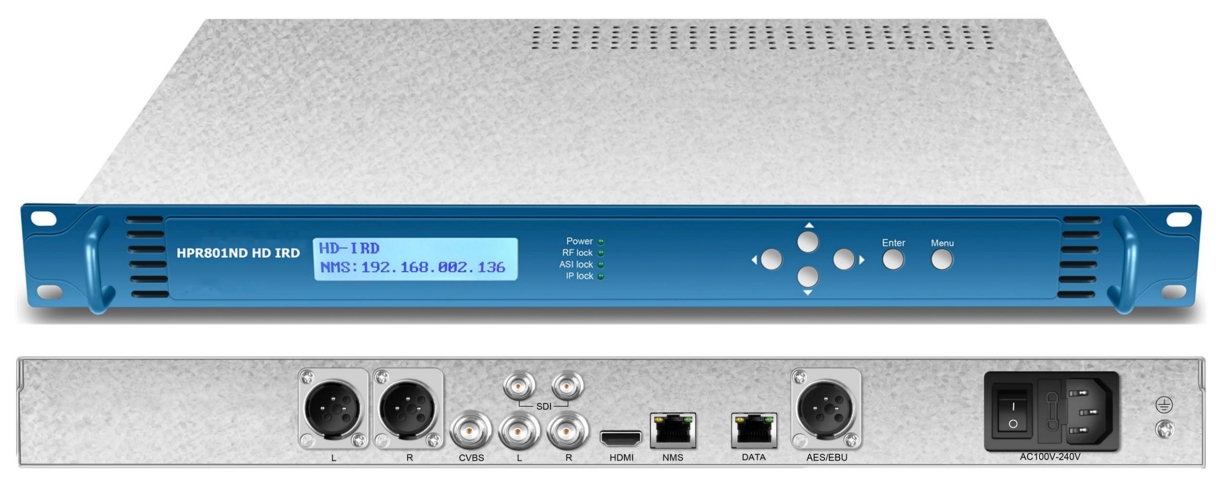

HPR801ND network Decoder
Supports AVS+, H.265/HEVC, H.264, MPEG-2 video decoding
Supports DRA, AC3, EAC3, AAC, MPEG audio decoding
Accepts multiple streaming protocols:
HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray (SRT optional)
Outputs include HDMI, SDI (SD/HD), CVBS, AES/EBU, Analog Audio
Built-in BISS-1/BISS-E descrambling
Web-based B/S architecture for remote management
1080P/1080I/720P/576I/480I resolutions
Ideal for live broadcast reception, IPTV VOD support, and monitoring
24W low-power design for long-term operation
The HPR801ND combines stability, wide compatibility, and professional decoding performance in one compact unit, making it perfect for:
IPTV system deployments
Broadcast station monitoring
Hotel and hospital TV systems
Corporate streaming environments
Multi-protocol IP reception scenarios
Whether you are upgrading an existing headend or building a new IPTV system, the HPR801ND delivers reliable, high-performance decoding with outstanding value.
Catcast also offers a variety of IRD decoders; please Click here to view the IRD catalog.
