In the era of digital broadcasting, IPTV (Internet Protocol Television) has become one of the most advanced and flexible ways to deliver video content. Whether for hotels, schools, corporate networks, or broadcasters, IPTV systems rely on a core device — the IPTV encoder.
An IPTV encoder (also known as an encoder IPTV or IPTV video encoder) converts traditional video and audio signals into digital IP streams. These streams can then be transmitted over the internet or a local area network (LAN) to TVs, computers, or mobile devices. With over 20 years of expertise in CATV, IPTV, and fiber optic transmission equipment, Catcast provides high-performance IPTV encoders that ensure superior picture quality and reliability in professional environments.
An IPTV encoder is a professional hardware device designed to encode video and audio signals (from HDMI, SDI, CVBS, or ASI inputs) into IP-based streams. The encoded streams are distributed over Ethernet networks using common IP protocols such as UDP, RTP, RTSP, HTTP, HLS, RTMP, or SRT.
In simple terms, an encoder IPTV transforms raw video sources into digital streams optimized for IPTV headend systems — forming the foundation of a modern IPTV broadcasting solution.
The encoding process involves several key steps:
Signal Input:
The encoder receives signals through multiple interfaces — such as HDMI, SDI, CVBS, or ASI — depending on the source (camera, satellite receiver, or media player).
Compression:
The device compresses the raw video and audio using efficient codecs like H.264 (MPEG-4 AVC) or H.265 (HEVC). This reduces the file size without sacrificing quality, ensuring smoother network transmission.
Packetization:
The compressed data is divided into small IP packets suitable for Internet or LAN distribution.
Streaming Output:
Finally, the encoder transmits the IP stream over various protocols — UDP, RTP, RTSP, HLS, RTMP, or SRT — to decoders, IPTV set-top boxes, or streaming servers.
Tip: A reliable IPTV encoder ensures low latency, stable transmission, and clear video quality — essential for professional streaming or headend systems.
Depending on capacity and use case, IPTV encoders can be categorized as follows:
Designed for professional networks, this type of encoder delivers stable, high-definition output for continuous 24/7 broadcasting. Catcast’s HD IPTV headend encoders are widely used in hotels, campus TV systems, and IPTV operators.
For projects requiring ultra-high-definition content, a 4K IPTV encoder supports resolutions up to 3840×2160, providing exceptional clarity and detail for premium viewing experiences.
Compact yet powerful, these encoders take HDMI input directly from video sources and stream it over IP, ideal for smaller systems or live streaming setups.
Catcast offers a full range of IPTV video encoders, ensuring every customer finds a solution that matches their system’s scale and technical requirements.
IPTV encoders are used across a wide range of industries, including:
Hospitality: For hotels or resorts distributing HD TV channels to guest rooms over IP networks.
Education: For campus broadcasting, e-learning, or live lectures.
Corporate: For internal communication, training, and digital signage.
️ Sports & Events: For live streaming matches, concerts, or conferences.
Residential or ISP Networks: For IPTV or OTT content delivery.
No matter the application, the IPTV encoder serves as the first and most important stage in the content delivery chain.
When selecting an IPTV encoder, consider the following specifications to ensure top performance:
Video Compression: H.264 or H.265 encoding
Audio Compression: MPEG-1 Layer 2, LC-AAC, or HE-AAC
Input Interfaces: HDMI, SDI, CVBS, or IP
Output Protocols: UDP, RTP, RTSP, HTTP, HLS, RTMP, or SRT
Streaming Modes: Unicast and multicast support
Resolution: Up to Full HD 1080p or even 4K, depending on model
Logo and Text Overlay: For branding and identification
Remote Management: Web interface (Web-NMS) or LCD control panel
High Stability: 24/7 operation with low latency
A professional IPTV encoder should deliver not only excellent video compression but also reliable transmission and easy configuration, especially for large-scale systems.
When exploring the market for IPTV encoder sales, it’s essential to look beyond just price. Factors such as encoding format (H.264 or H.265), input options (HDMI, SDI, CVBS), and protocol compatibility (UDP, RTP, HTTP, HLS, RTMP, or SRT) all determine the quality of your final stream.
At Catcast, we offer a complete portfolio of HD IPTV encoders that meet different project needs — from small-scale hotel IPTV systems to full professional broadcast headends. If you’re ready to buy IPTV encoder hardware that guarantees stability, scalability, and excellent image quality, Catcast provides tailored solutions backed by more than 20 years of industry expertise.

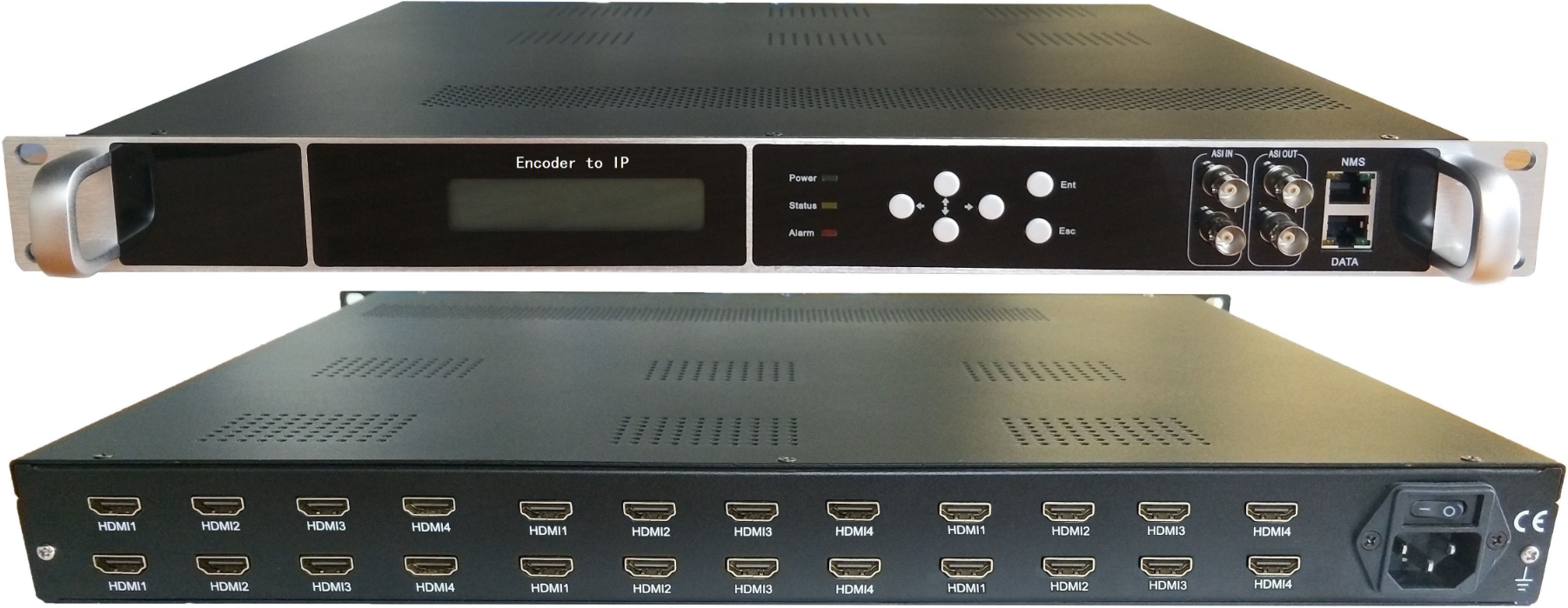

If you’re searching for a high-capacity IPTV encoder for professional video distribution, the Catcast HP824LX-N 24 HDMI to IP Encoder is a top-tier choice.
Key Features:
Support QR code, LOGO, and OSD insertion for every local channel
4/8/12/16/20/24 HDMI input, support HDCP
Support MPEG-4 AVC/H.264 Video encoding
Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2, AC3 audio encoding
4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP protocol, support multicast and unicast
2 ASI inputs
2 ASI Independent output (optional) as a copy of 4MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting
LCD、key function
Control via web management, and easy updates via web
An IPTV encoder is the heart of any IPTV or OTT system — transforming analog or digital signals into reliable IP streams for seamless delivery across networks. Choosing the right IPTV video encoder ensures high compression efficiency, consistent performance, and future-proof scalability.
As a trusted manufacturer with over two decades of experience, Catcast provides a complete range of HD IPTV headend encoders, 4K IPTV encoders, and HDMI encoder IPTV streaming devices that deliver broadcast-level quality and stability for every application.
