Professional Tuner To IP Gateway: Catcast HPR3624D for Digital TV & IPTV Front-End Systems
In the modern digital broadcasting landscape, the transition from traditional RF signal distribution to IP-based networks is no longer optional, it is a necessity. Whether you are operating a cable TV digital headend, deploying an IPTV live broadcasting system, or managing a hotel television network, the Tuner to IP Gateway is the critical bridge that converts satellite, cable, and terrestrial signals into IP streams for network distribution.
The Catcast HPR3624D stands out as a professional, high-density solution engineered precisely for these demanding front-end environments .
A Tuner to IP Gateway is a headend interface conversion device. It receives signals from multiple RF sources, such as DVB-S/S2 satellite, DVB-C cable, or DVB-T/T2 terrestrial broadcasts, demodulates them, and converts them into IP packets (SPTS or MPTS) for delivery over an Ethernet network. This functionality is the cornerstone of modern IPTV and digital TV systems, enabling operators to stream live channels to any device on the network.

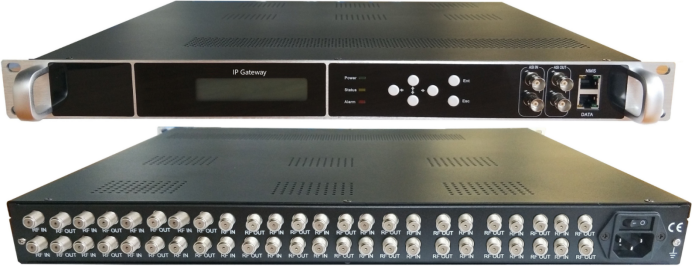

The HPR3624D is a professional-grade device that combines tuner demodulation, multiplexing, and IP streaming in a compact 1RU chassis. Its design philosophy centers on flexibility, scalability, and cost-effectiveness, making it a versatile choice for various digital distribution systems
One of the most compelling reasons to choose the HPR3624D is its extraordinary versatility regarding input types and quantity:
Scalable Tuner Configuration: Supports 4, 8, 12, 16, 20, or up to 24 tuner inputs, allowing operators to scale their systems as needs grow.
Mixed Tuner Support: The gateway supports multiple tuner standards, DVB-S/S2/S2X, DVB-C, DVB-T/T2, ATSC, and ISDB-T. Critically, these can be mixed within the same chassis. For example, you can configure 4 DVB-S/S2 tuners alongside 4 DVB-T/T2 tuners to receive content from both satellite and terrestrial sources simultaneously .
Additional Inputs: Beyond RF inputs, the device features 2 ASI inputs for re-multiplexing external transport streams and supports IP input of up to 128 SPTS or MPTS streams via UDP unicast/multicast over its 1000M Ethernet ports
2.2 Advanced Processing and Output Features
The HPR3624D is equipped with professional-grade features to ensure clean, secure, and stable streams for your network:
BISS Descrambling: Supports BISS Mode 1 and Mode E, enabling the descrambling of encrypted content directly at the headend—a crucial feature for receiving secured satellite feeds .
Robust IP and ASI Outputs: Delivers IP output (UDP unicast/multicast) and 2 independent ASI outputs (as a copy of 4 MPTS), providing flexibility for integration with legacy and modern equipment .
Stream Management: Includes PID remapping, accurate PCR adjusting, and a Null PKT Filter to optimize bandwidth and maintain stream integrity
For system integrators, headend engineers, and broadcast managers seeking a "Tuner to IP Gateway," the HPR3624D directly addresses the common pain points of modern signal distribution.
Consolidation: Eliminates the need for separate, expensive hardware by supporting multiple signal types and standards in a single unit .
Scalability: The modular tuner design allows you to start with fewer tuners and expand up to 24 as your channel lineup grows .
Cost-Effectiveness: Its high integration and versatile feature set provide exceptional value, reducing both capital and operational expenditures
