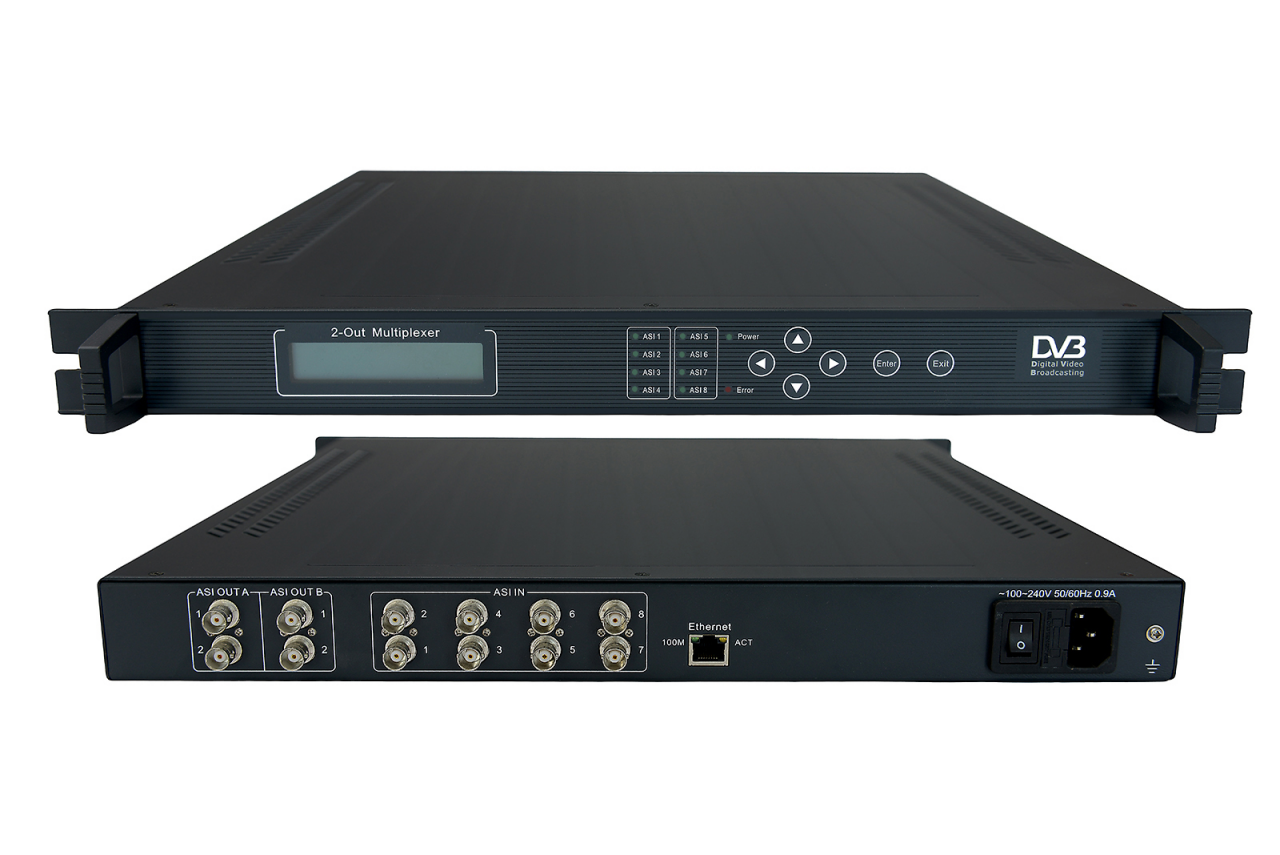

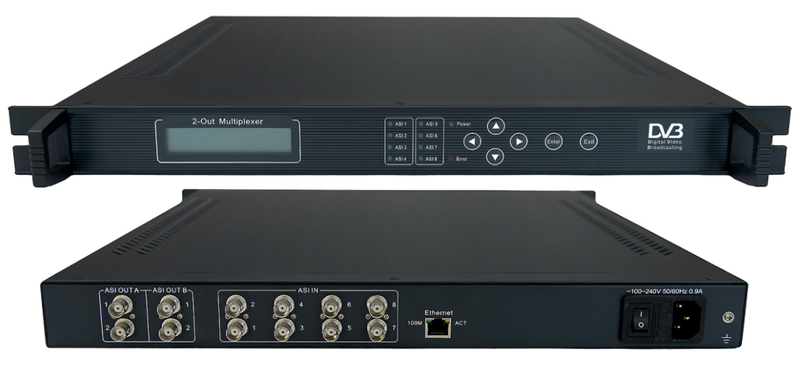

HPK812 2ASI OUT TS Multiplexer

Input:ASI Output:ASI PID Range:0000-1FFF Size:1U Min Oder:1pcs
Availability:
Quantity:

HPK812 ASI OUT TS Multiplexer

Overview

Multiplexer is a 2-separate ASI out TS (transport stream) remultiplexer for digital broadcasting TV system. It has 8×ASI input (input bit rate can reach up to 270Mbps), 2 pairs of ASI (A&B) output (output bit rate can reach up to 108 Mbps), and 1 Ethernet port for network controlling. It can also insert EPG (Electronic Program Guide), CA (Conditional Access), as well as data broadcasting to each output stream. Besides it suits 1U rack and can be operated by front panel LCD/Keyboard and controlled by NMS (Network Management Software).
