HP7000 Digital TV Front-end System – Catcast Professional IPTV & RF Headend Solution

In today’s fast-growing digital television industry, operators need a reliable, flexible, and high-density headend system capable of handling IPTV, RF modulation, transcoding, and multi-format signal distribution. The HP7000 Series Digital TV Front-end System from Catcast is designed specifically for cable TV operators, IPTV providers, hotels, campus TV systems, hospitals, and broadcasting integrators looking for a professional all-in-one solution.

The HP7000 combines encoding, multiplexing, IP streaming, tuner receiving, CAM descrambling, and RF modulation into a compact 1U chassis, helping operators reduce equipment costs while improving system efficiency.

What is the HP7000 Digital TV Front-end System?

The HP7000 is a modular digital TV headend platform developed by Catcast Official Website for professional broadcast and IPTV distribution environments. It supports multiple signal sources including:

• HDMI encoding

• CVBS SD encoding

• DVB-S/S2 tuner input

• DVB-T/T2 tuner input

• DVB-C tuner input

• ATSC tuner input

• ISDB-T input

• DTMB input

• PCMCIA CI CAM descrambling

The system supports both RF and IP output simultaneously, making it ideal for modern hybrid television systems.

Key Features of HP7000

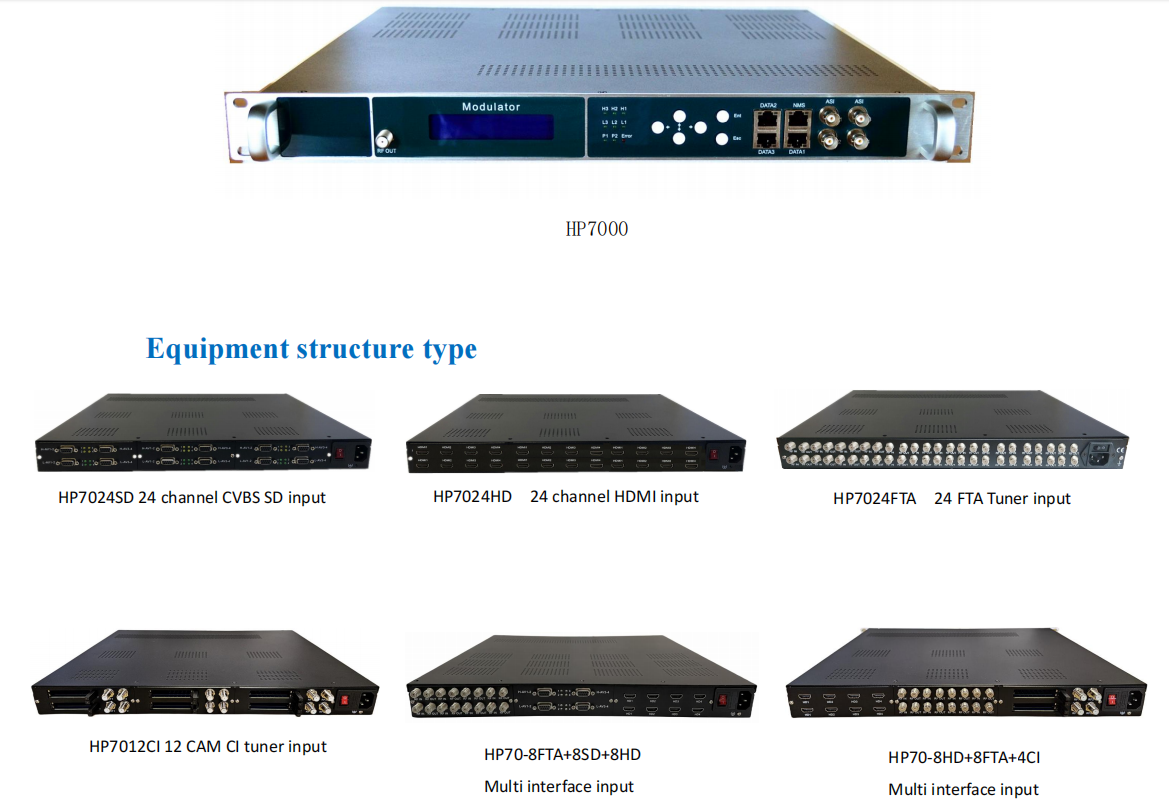

1. High Density Modular Design

The HP7000 adopts a flexible modular architecture supporting up to:

• 24 HDMI inputs

• 24 CVBS inputs

• 24 FTA tuner inputs

• 12 CI CAM descrambling channels

Operators can customize the configuration according to project requirements.

This modular structure is especially suitable for:

• Cable TV operators

• IPTV headend systems

• Hospitality TV systems

• Educational campus TV

• Government broadcasting projects

2. Multiple RF Modulation Standards

The HP7000 supports global RF standards including:

• DVB-C

• DVB-T

• ATSC

• ISDB-T

• DTMB

It supports:

• 8 / 12 / 16 / 24 RF carriers for DVB-T/ATSC/ISDB-T/DTMB

• 8 / 16 / 32 carriers for DVB-C

This allows broadcasters to deploy the HP7000 worldwide in different transmission environments.

3. Professional IPTV Streaming Support

The HP7000 provides advanced IPTV streaming capability with support for:

• UDP

• RTP

• RTMP

• HTTP

• RTSP

• HLS

• SRT

The device includes 3 Gigabit Ethernet ports for stable streaming distribution and supports up to 256 SPTS outputs.

This makes HP7000 an excellent solution for:

• IPTV operators

• OTT streaming projects

• Hotel IPTV systems

• Live TV streaming networks

4. CI CAM Descrambling Support

For encrypted TV channels, the HP7000 supports PCMCIA CAM modules with tuner descrambling functionality.

Features include:

• Dual-channel CAM descrambling per module

• Maximum 12 CI channels

• Professional broadcast integration

This enables operators to legally receive and redistribute subscription television services.

5. H.264 / H.265 Encoding Support

The HP7000 supports:

• MPEG2 encoding

• H.264 encoding

• H.265 encoding

The H.265 module helps operators save bandwidth while maintaining high-quality video transmission.

Available encoder modules include:

• HDMI H.264 encoder

• HDMI H.265 encoder

• CVBS SD encoder

Why Choose Catcast HP7000?

All-in-One TV Headend Solution

Instead of purchasing separate:

• Encoders

• Multiplexers

• Modulators

• IPTV gateways

• CI descramblers

the HP7000 integrates all functions into one professional platform.

Cost-Effective Broadcast Equipment

Compared with traditional multi-device architecture, HP7000 reduces:

• Rack space

• Power consumption

• Installation complexity

• Maintenance cost

This makes it a cost-effective choice for growing IPTV and CATV networks.

Flexible Customization

Every project has different requirements. Catcast allows customized combinations including:

• Tuner + Modulator

• HDMI Encoder + IPTV

• CI Descrambling + RF output

• Hybrid IPTV + RF systems

The flexible module structure ensures future scalability.

Typical Applications

The HP7000 is widely used in:

Hotel IPTV Systems

Deliver live TV channels to hotel rooms through RF or IP networks.

Cable TV Headend Systems

Receive satellite or terrestrial channels and redistribute them to subscribers.

Educational Campus TV

Create centralized IPTV broadcasting systems for universities and schools.

Hospital TV Systems

Provide stable TV service distribution in medical facilities.

Government & Enterprise TV Networks

Deploy secure internal television broadcasting systems.

Technical Advantages of HP7000

• Compact 1U chassis

• WEB network management

• LCD front panel control

• Online firmware upgrade

• ASI input/output support

• High-density tuner integration

• Multi-protocol IPTV streaming

• Professional RF modulation

• Stable 24/7 operation

Buy HP7000 from Catcast

If you are searching for:

• Digital TV Headend System

• IPTV Headend Equipment

• DVB-C Modulator

• ATSC Modulator

• HDMI IPTV Encoder

• CI CAM IPTV Gateway

• Professional CATV Equipment

the HP7000 from Catcast DVB Equipment Supplier is a professional and reliable solution trusted by global system integrators and operators.
