HP4000 All-in-One IPTV Server: Tuner/HDMI to IPTV System with Ultra-Low Latency SRT Output

In the fast-paced world of digital broadcasting, system integrators and headend engineers are constantly searching for a solution that simplifies complexity without sacrificing performance. The HP4000 IPTV System Server is the answer, a high-performance, cost-effective professional IPTV server designed to solve digital TV signal sourcing for business locations, digital TV front-end systems, and next-generation DTV broadcasting .

Whether you are distributing live sports, managing a hotel IPTV network, or building a community television system, the HP4000 delivers a truly All-in-One experience.

What Makes the HP4000 an "All-in-One" IPTV Server?

Unlike traditional headend setups that require multiple separate devices (receivers, encoders, multiplexers, and IP streamers), the HP4000 integrates everything into a single, highly compact 1RU chassis.

1. Modular Input: Tuner, HDMI, and CVBS in One Device

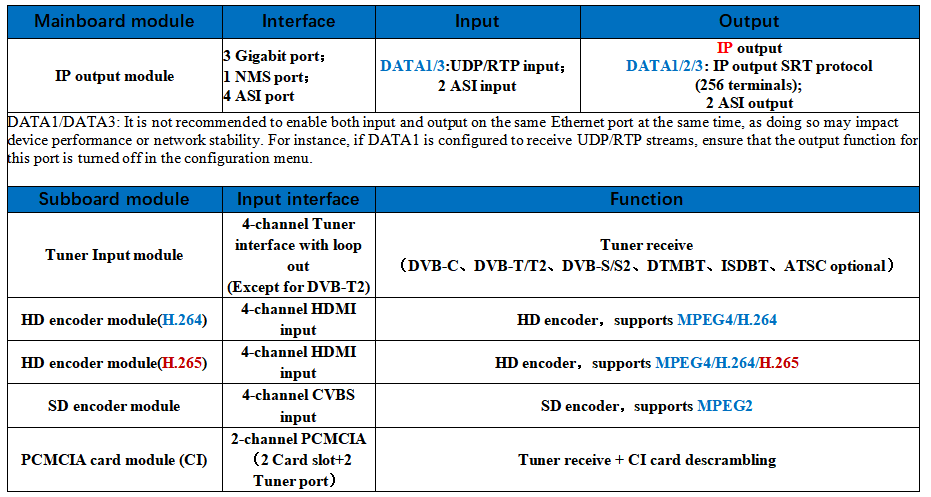

The HP4000 supports 4/8/12/16/20/24 Tuner/HDMI/CVBS inputs. Its modular interface design allows you to mix and match input modules based on your specific needs :

This means you can receive satellite signals, encode HDMI sources, and descramble encrypted feeds, all within the same device.

2. Powerful Output: SRT and UDP IP Streaming

The HP4000 offers 3 Gigabit Ethernet outputs and supports up to 256 terminals per device via IP output over SRT protocol (DATA1/2/3) . It also features 2 ASI inputs and 2 ASI outputs for legacy integration .

The SRT Advantage: Near Real-Time Live Sports Transmission

One of the standout features of the HP4000 is its support for SRT (Secure Reliable Transport) protocol for IP output. But why does this matter?

Example: Live Football Match Broadcasting

Imagine you are broadcasting a live football match. With traditional UDP streaming, you might experience buffering, packet loss, or a noticeable delay. With SRT, the HP4000 delivers:

• Ultra-low latency: Viewers see the action almost in real-time. For a live football match, SRT transmission means you see the goal almost as it happens, no frustrating delays.

• Enhanced redundancy: SRT ensures reliable delivery even over unstable networks, making it ideal for remote sports venues or temporary broadcasts.

• Data 1/2/3 output: The device supports IP output over SRT on multiple data ports, allowing for redundant or multi-destination streaming .

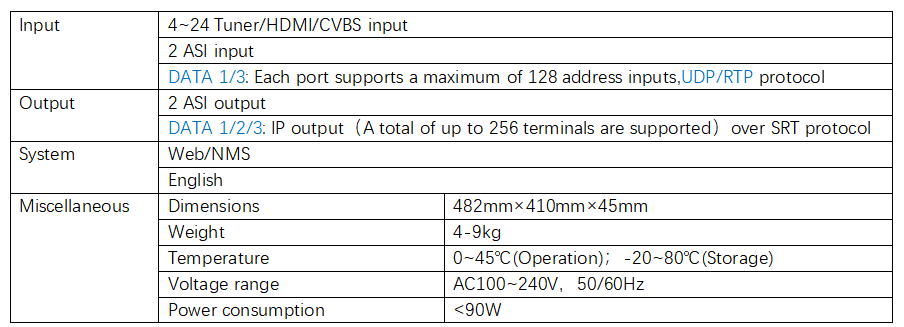

Key Features at a Glance

Who Is the HP4000 For?

The HP4000 is designed for:

• IPTV System Integrators looking for a 1U rack equipment solution for signal reception, encoding, and IP streaming.

• Hotel and Hospital TV Systems needing to distribute satellite and local content to hundreds of rooms.

• Sports Venues and Live Event Broadcasters requiring ultra-low latency SRT transmission.

• Digital TV Front-End Systems that need mixed tuner and HDMI input support.

Conclusion

The HP4000 All-in-One IPTV Server redefines what a Tuner/HDMI to IPTV system can do. By combining modular tuner inputs, HDMI/CVBS encoding, BISS/CI descrambling, and SRT low-latency IP output in a single device, it eliminates the need for multiple hardware components, saving space, cost, and complexity.

Whether you are streaming a live football match with near real-time SRT delivery or managing a large-scale IPTV distribution network, the HP4000 is built to perform.
