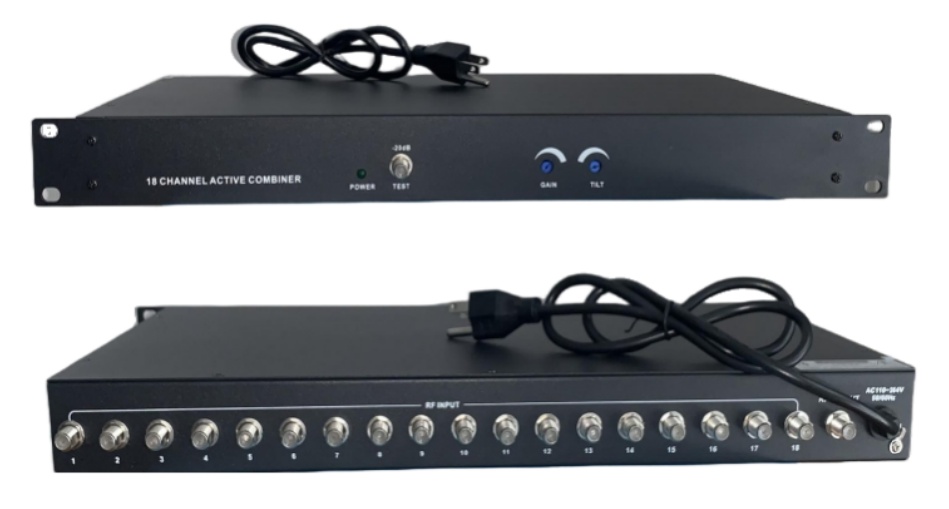

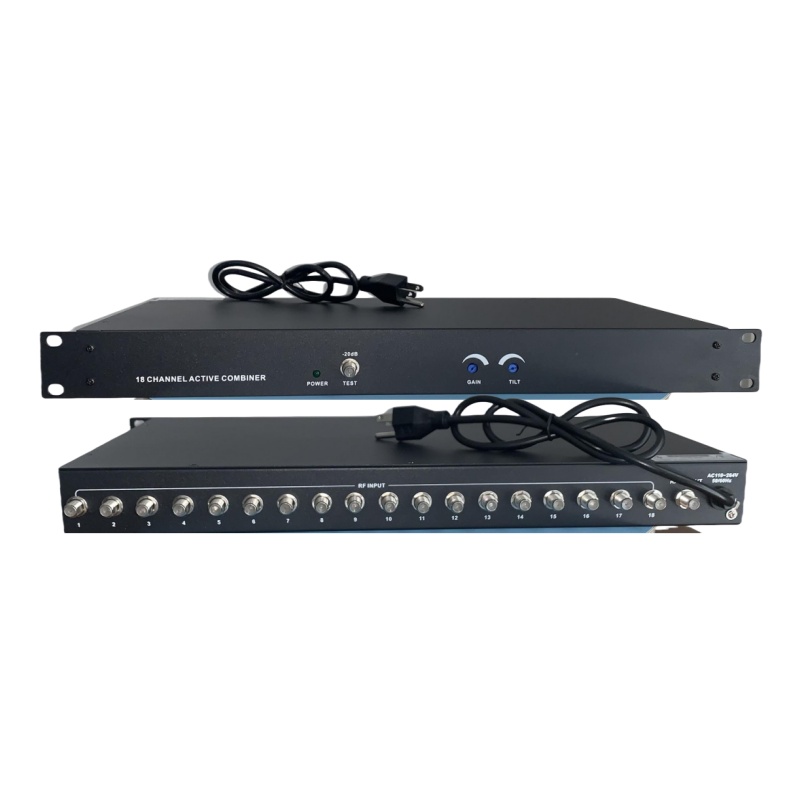

HP161 860/1000MHz 18 in 1 CATV RF Combiner
INTRODUCTION
The HP161 CATV RF Combiner is a professional quality active output combiner with 18 input ports. Quality engineering design and manufacturing are reflected in the excellent port-to-port isolation and insertion loss features, which make it an outstanding value in cable distribution network.
FEATURES
1. 19’’ rack mountable with 1RU size
2. High 30dB port-to-port isolation provides carrier rejection
3. Employ high quality SMT core in key part to achieve excellent isolation and insertion loss
4. Adjustable TILT and GAIN controls for easy system balancing
5. -20dB test port provides quick access for headend test and system monitor
SPECIFICATION
INPUT | ||||
Input Connector | 75Ω F-Female *18 | |||
Frequency Range | 50~860MHz (1000MHz optional) | |||
Port-to-port Isolation | 30dB (Adjacent Ports) | |||
Return Loss | 12dB | |||
OUTPUT | ||||
Output Connector | 75Ω F-Female *18 | |||
Test Point Loss | 20dB | |||
Flatness | ±2dB | |||
Gain | 20dB MAX (0dB at default) | |||
TILT | 20dB MAX (0dB at default) | |||
CTB | ≥62dB | |||
CSO | ≥61dB | |||
GENERAL | ||||
Power Supply | AC 110~264V | Power Consumption | <W | |
Weight | 7 KG | Dimension | 483*194.5*88 (mm) | |
