HPS8403F
CatCast
8543709990

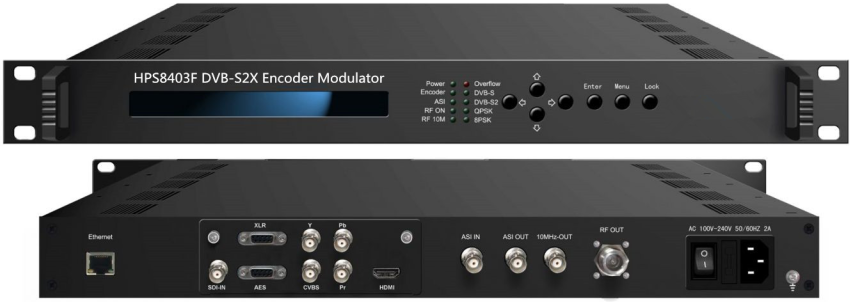

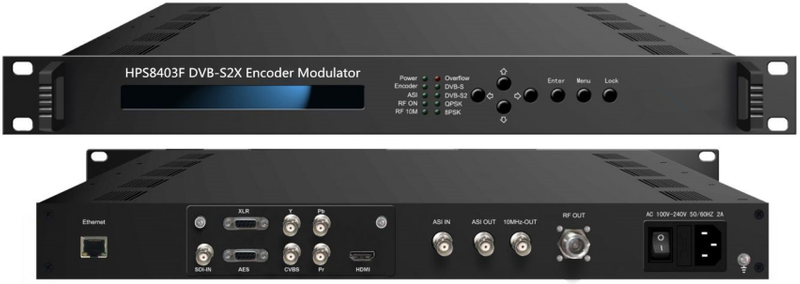

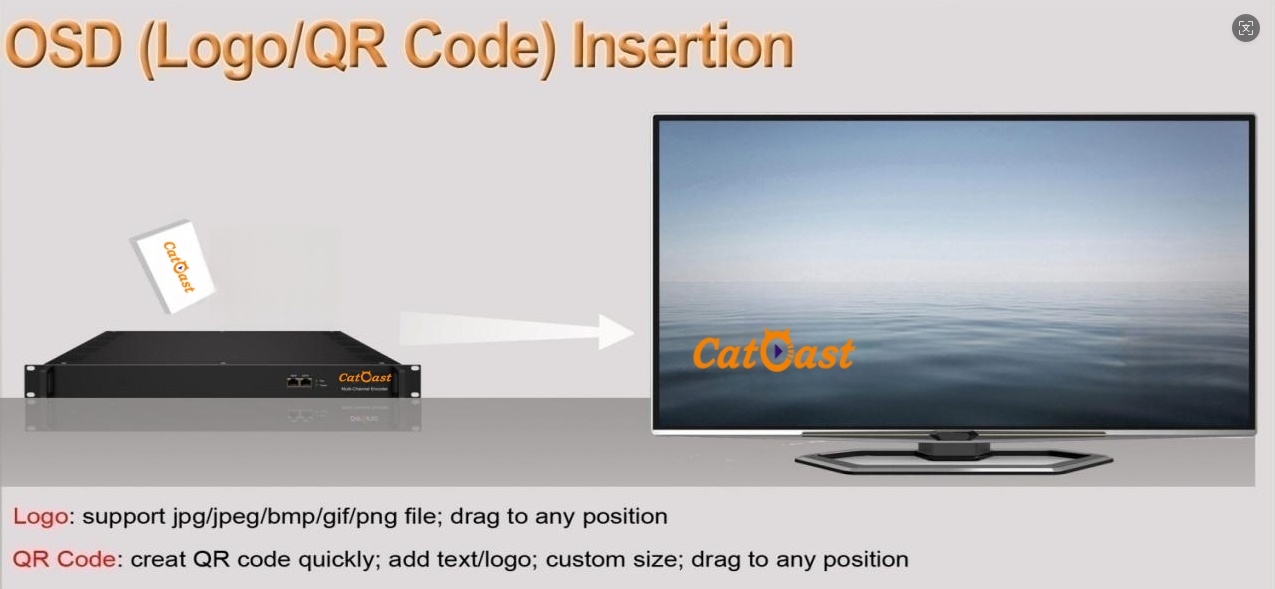

HPS8403F DVB-S2X Encoder Modulator
Product Overview
HPS8403F DVB-S/S2/S2X Encoder Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input. It outputs ASI and DVB-S/S2/S2X RF (IF Optional) in the same time.

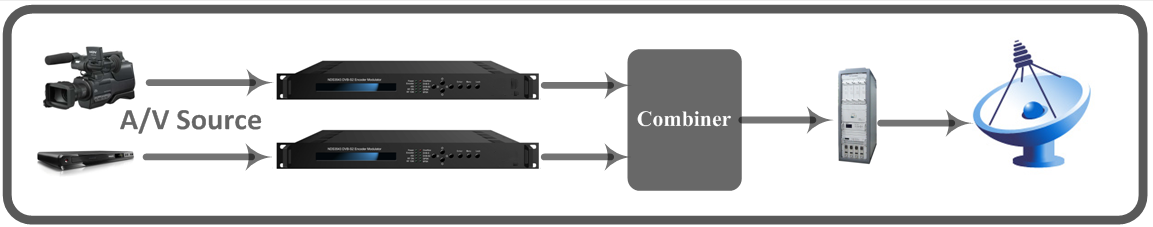

The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, HPS8403F is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
Support DVB-S/S2/S2X RF (IF Optional) output and ASI output
LCN support (Logical Channel Number)
Output Frequency: 950-2150MHz; IF: 50-200MHz
QPSK, 8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations
Support RF CID setting
Low latency achieved (CVBS Encoding modules excluded)
Support BISS fucntion
Support 10MHz reference clock
Support Web NMS and front panel LCD & Keyboard control
Upgrade device through web NMS

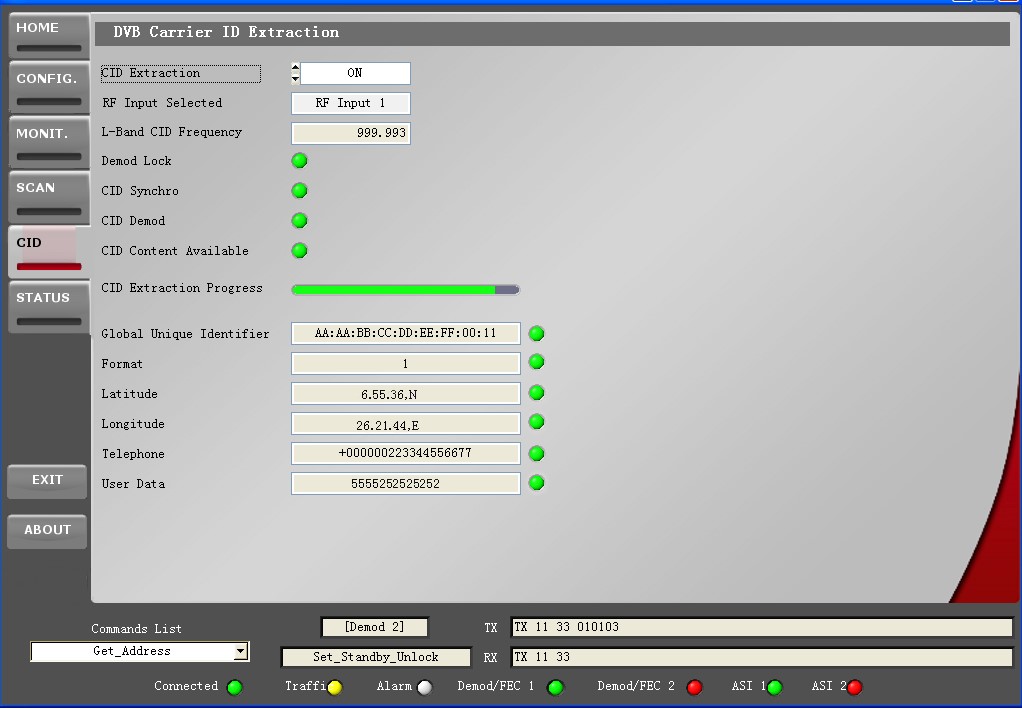

CID TEST SAMPLE ILLUSTRATION

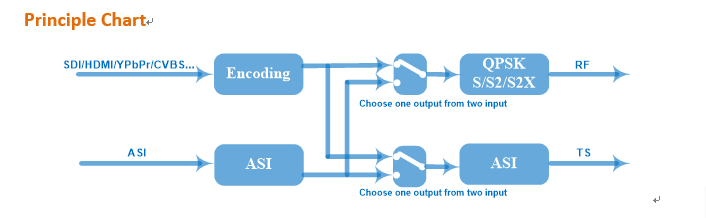

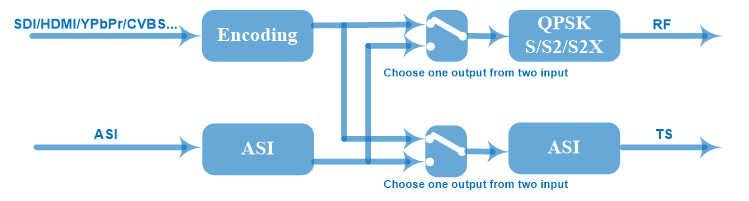

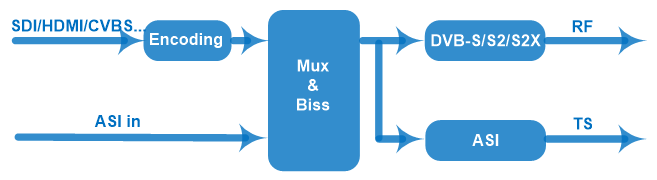

Principle Chart
Technical Specifications

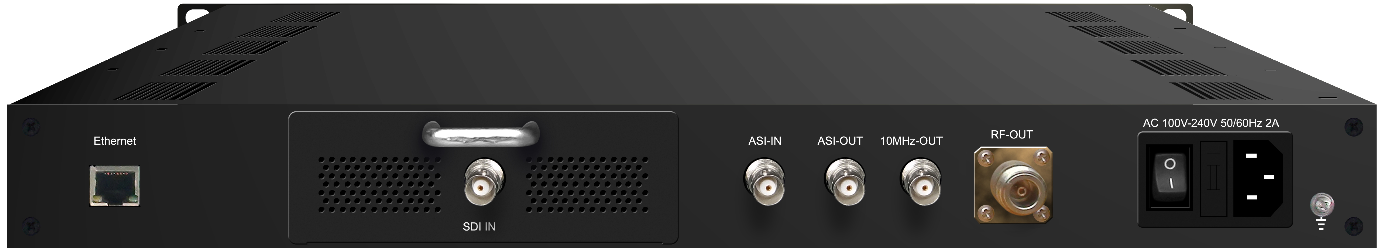

(Plan A) Single SDI Encoding Input
| Video | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Input | SDI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
| Audio | |
| encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |

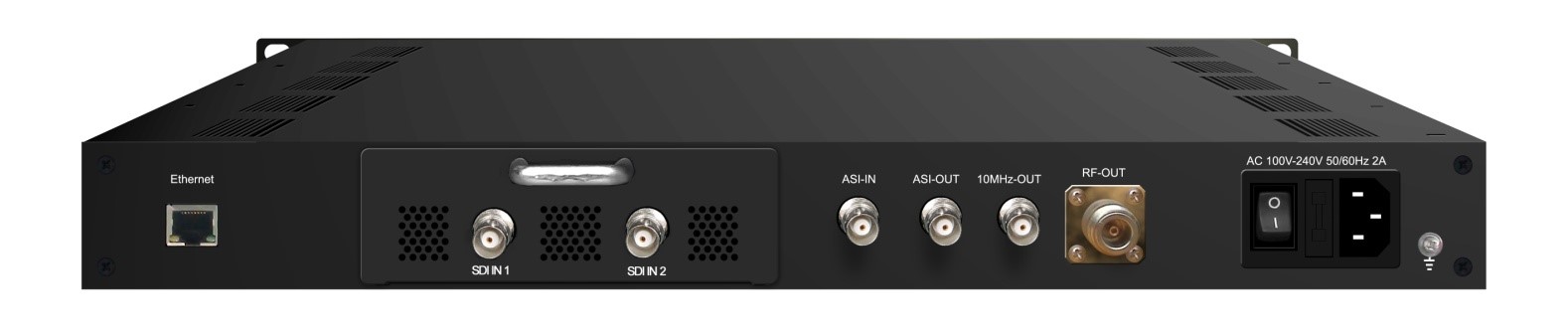

(Plan B) Double SDI Encoding Input
| Video | |
| Encoding | H.264/AVC High Profile Level 4.0 (HD) |
| Input | SDI*2 |
| Resolution | 1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
| Audio | |
| encoding | MPEG1 Layer II (1 *Stereo or 2*Mono) |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

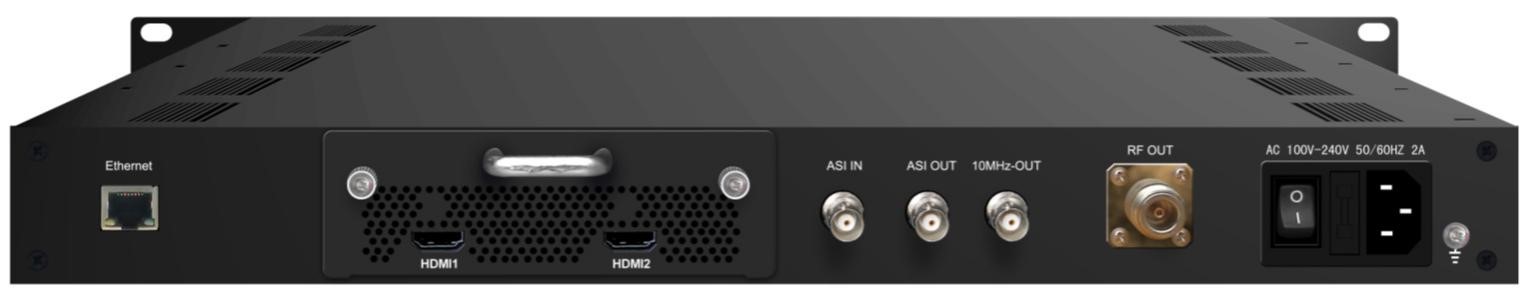

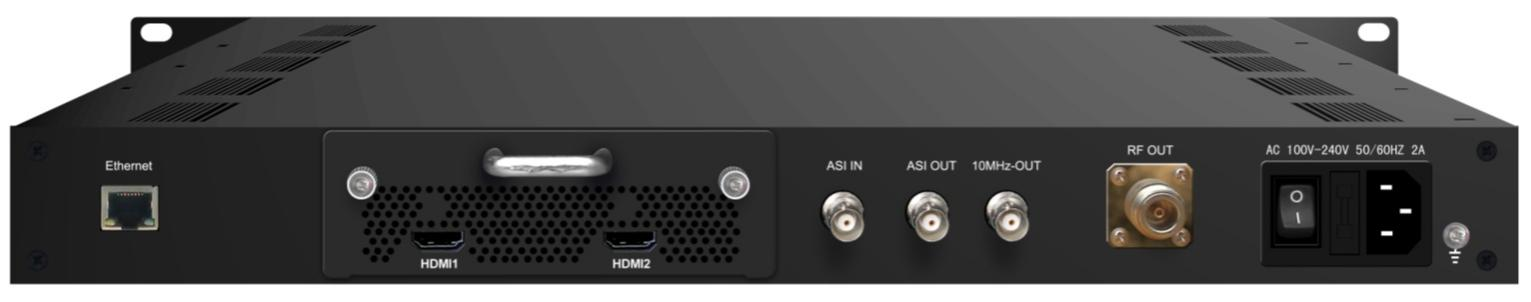

(Plan C) Single HDMI Encoding Input
| Video | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Input | HDMI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
| Audio | |
| Encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

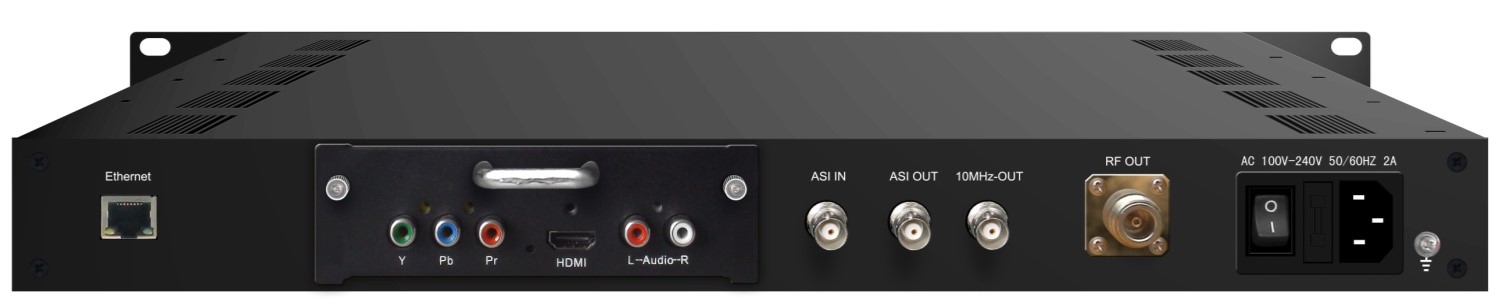

(Plan D) HDMI/YPbPr/CVBS 3-in-1 Encoding Input
| Video(HDMI) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | HDMI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
| Audio (HDMI) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
| Interface | HDMI*1 |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
| Video (YPbPr/CVBS) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | YPbPr*1/CVBS *1 |
| Resolution | CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
| Audio (L/R) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
| Interface | 1*Stereo/2*mono |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |

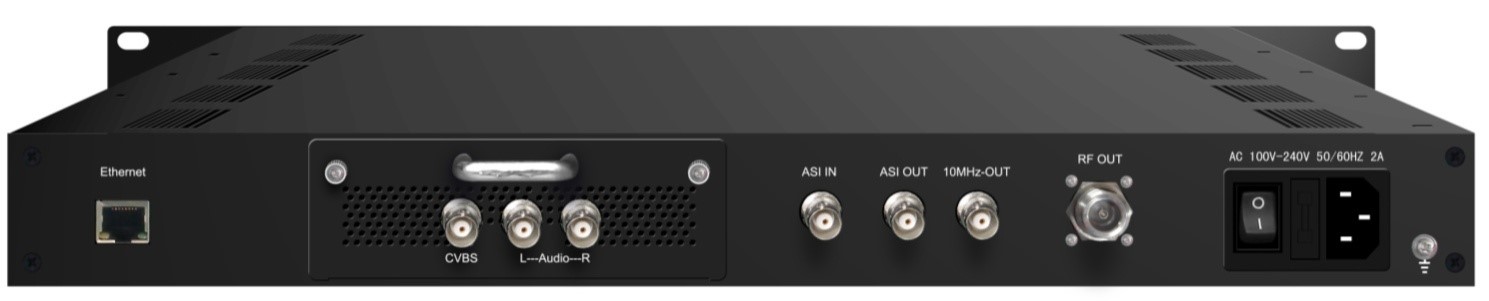

(Plan E) Single CVBS Input Encoding
| Video | |
| Encoding | Option 1: MPEG-2 MP@ML(4:2:0); Option 2: H.264 High Profile Level 3.0 (SD) |
| Input | CVBS*1 (BNC Type) |
| Resolution | 720*576 (PAL), 720*480 (NTSC) |
| Audio | |
| Encoding | MPEG1 Layer II |
| Input | Unbalanced 1 stereo/2 Mono |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

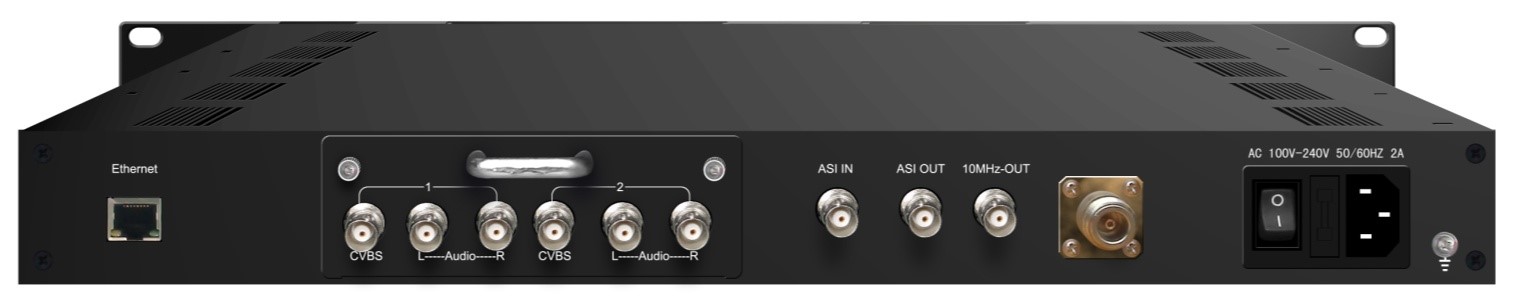

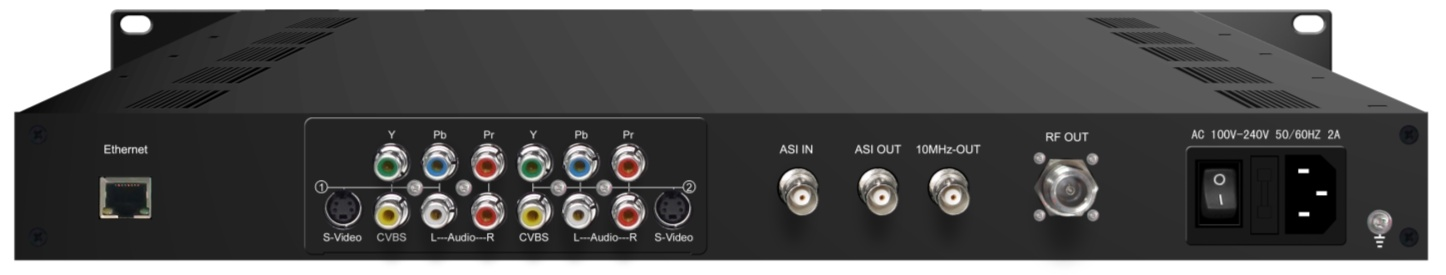

(Plan F) Dual CVBS Encoding Input
| Video | |
| Encoding | MPEG-2 MP@ML(4:2:0) |
| Input | CVBS*2 (BNC Type) |
| Resolution | 720*576 (PAL), 720*480 (NTSC) |
| Audio | |
| Encoding | MPEG1 Layer II |
| Input | Unbalanced 1 stereo/2 Mono |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

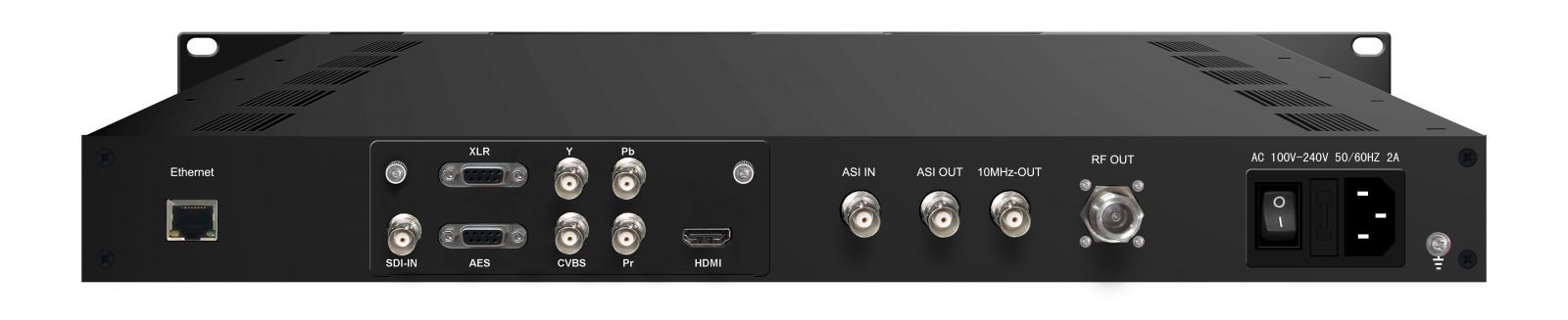

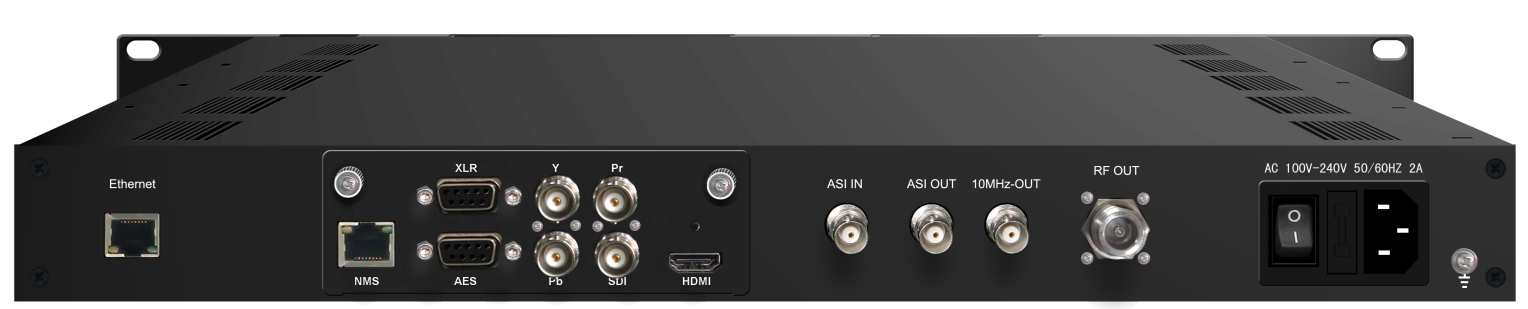

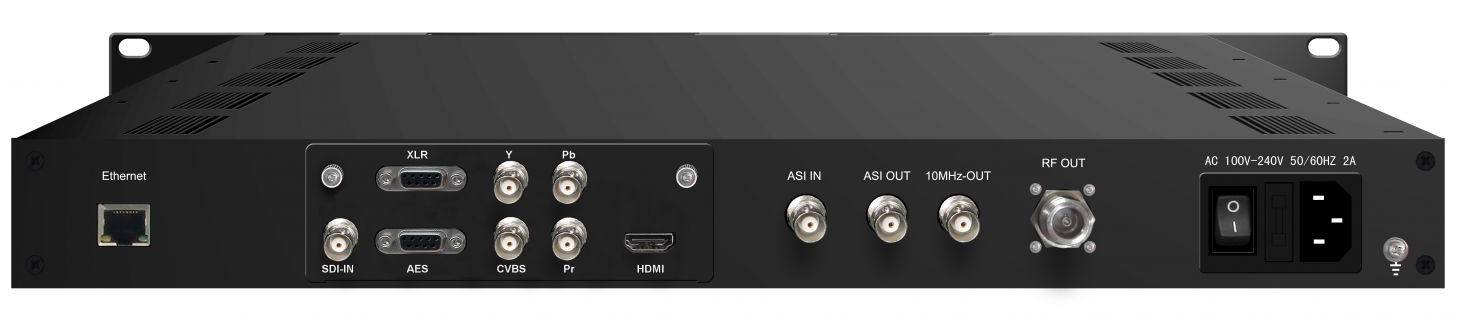

(Plan G) HDMI/SDI/YPbPr/CVBS/XLR/AES Encoding Input
| Video | |||
| Encoding | MPEG-2 HD/SD or MPEG-4 AVC/H.264 HD/SD | ||
| Input | HDMI/SDI//YPbPr/CVBS/ | ||
| Resolution | Input | Output | Interface Applicable |
| 1920×1080i@60 | 1920×1080, 1440×1080, 1280×1080i, 960×1080i | HDMI SDI YPbPr | |
| 1920×1080i@59.94 | |||
| 1920×1080i@50 | |||
| 1280×720p@60 | 1280×720, 960×720p, 640×720p | HDMI SDI YPbPr | |
| 1280×720p@59.94 | |||
| 1280×720p@50 | |||
| 720×576i@50 | 720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 | SDI, CVBS | |
| 720×480i@59.94 | 720×480, 704×480, 640×480, 544×480, 528×480, 352×480 | SDI CVBS | |
| Bit rate | 0.52 – 60.00 Mbps | ||
| Rate Control | CBR | ||
| GOP Structure | Auto, IP, IPB, IPBB, IPBBB | ||
Aspect Ratio Chroma | 4:3, 14:9 (for SD video), 16:9 (for HD video) 4:2:0, 4:2:2 | ||
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening | ||
| Audio | |
| Encoding | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1 available); DD AC3 passthrough (for SDI in) |
| Input | 2×XLR, 4×AES, 1×HDMI, 1×SDI (support maximum 4 stereos synchronous processing or one DD 5.1 CH processing) |
| Sample rate | 48KHz |
| Bit rate | 32Kbps~384Kbps |
| Low delay options | 150ms, 200ms, 350ms, 650ms |
Generals
| Input Interface | 1/2*CVBS /1*SDI /1*HDMI/1*(HDMI+YPbPr+CVBS 3-in-1) optional | |||
| Output | DVB-S/S2/S2X RF output; (IF Optional) ASI output | |||
| Modulation Section | Standard | DVB-S | DVB-S2 | DVB-S2X |
| Outer coding | RS Coding | BCH Coding | BCH Coding | |
| Inner coding | Convolution | LDPC Coding | LDPC Coding | |
| Constellation | QPSK | QPSK,8PSK, 16APSK,32APSK | QPSK,8PSK, 16APSK,32APSK 8PSK-L,16APSK-L,32APSK-L | |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | QPSK: 13/45, 9/20, 11/20 8PSK: 23/36, 25/36, 13/18 16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90 32APSK: 32/45, 11/15, 7/9 8PSK-L: 5/9, 26/45 16APSK-L: 5/9, 8/15, 1/2, 3/5, 2/3 32APSK-L: 2/3 | |
| Roll-off Factor | 0.2,0.25,0.35 | 0.2,0.25,0.35 | 0.05, 0.10, 0.15 | |
| Symbol Rate | 0.5~45Msps | 0.5~40Msps (32APSK); 0.5~45Msps (16APSK/8PSK/QPSK) | 0.5~40Msps(32APSK,32APSK-L); 0.5~45 Msps (16APSK/8PSK/QPSK/16APSK-L/8PSK-L) | |
| BISS Scramble | Mode 0, mode 1, mode E | |||
System | Local Contro | LCD + control buttons | ||
| Remote Control | Web NMS | |||
| Low Latency Mode | Normal, Mode 1, Mode 2 | |||
| Language | English | |||
| Physical Specification | Demission | 410×460×44mm (W*L*H) | ||
| Temperature | 0~45℃(operation), -20~80℃(storage) | |||
| Weight | 4.5kgs | |||
| Power Supply | AC 100-240V 50/60Hz 2A | |||
